Wood Chipping Machine

wood chipping machine

Wood Chipping Machine

Wood chipping machine is used to produce wood into smaller wood chips with even length and uniform chip thickness, which is also called wood chipper machine. Except making wooden pallet for logistics transportation, wood chipper machine is widely used in a lot of industries such as production of paper making, edible fungus, shaving board, sawdust, high density board, fiber board and so on.

Wood chipping machine is one of the main equipment of the whole compressed wooden pallet production line. As famous wood chipper machine manufacturer in China, we supply high quality wood pallet machinery at wholesale price.

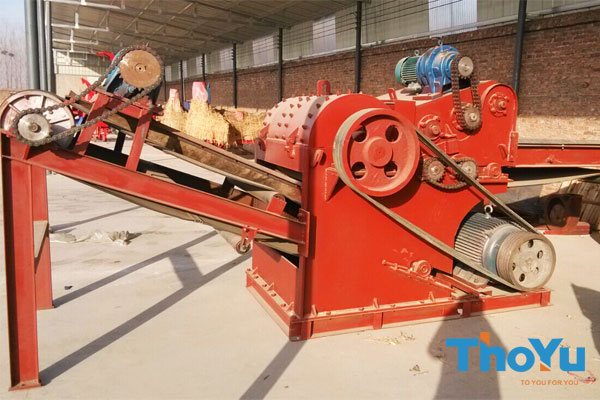

1. Drum Wood Chipper

Drum Wood Chipper Parameters
Model TY215 TY216 TY218 TY2113
Knife-cylinder diameter(mm) 500 600 800 1300
Feeding port size (mm) 160*400 230*500 320*680 380*700
Fly-cutter qty (piece) 2 2 2 2
Revolving speed(rotate/minute) 590 590 650 500
Feeding raw materials max diameter(mm) 160 230 300 350
Chip size(mm) 15-30 15-30 15-30 15-40
Production capacity(ton) 3-5 6-9 9-15 12-25
Main motor power(kW) 45 55 110 200
Feeder power(kW) 2.2-3 3-4 4-5 4-5
Conveyor power(kW) 3 3 3 3
Dimension(m) 1.47*1.55*0.97 2.95*1.9*1.5 2.2*2.15*1.5 3.67*2.517*2.05

2. Wood Chipping Machine (Disc Type)

Disk type wood chipping machine can be used in the forest directly and it’s very easy to operate and maintain. It has a higher requirement on thickness of the raw materials and the outing of the materials is more uniform.

Type TYQP400 TYQP600 TYQP740 TYQP1150 TYQP1410 TYQP1710
Cutter diameter (mm) 400 600 700 1000 1400 1700
Cutter number (piece) 3 3 4 4 6 6
Equipment power (kW) 11 15 30 55 90 200
Revolving speed (r/min) 900 900 900 900 800 800
Feeding port size (mm) 150*150 180*180 220*220 320*320 450*450 620*620
Max feed diameter (mm) 130 160 200 300 420 600
Cutter size (mm) 150 180 230 340 480 650
V-Belt length (mm) B2000*3 B2650*3 B3150*4 C3650*5
Final dimension (mm) 30-50
Production capacity (kg/hour) 500 1000 2200 6000 10000 16000
Total weight (kg) 300 480 1000 3300 3500 4500
External dimensions (m) 1.5*1*1.3 1.6*0.8*1.1 1.5*1*1.3 2.5*1.5*1.7 3*1.8*2 3*1.6*2.1

3. Wood Flaking Machine

Wood faking machine is with high power, and the materials after shaping is with good shape.

Wood flaking machine
Model BX466 BX468 BX4612 BX4612/5 BX4614
Cutter theoretical diameter (mm) 600 800 1200 1200 1400
Blade quantity (piece) 21 28 42 50 66
Blade length (mm) 225 300 375 463 463
Rotate speed (r/m) 50 50 50 50 50
Vane wheel rotate speed (r/m) 1960 1450 935 1420 1320
Wood shaving thickness (mm) 0.4-0.7 0.4-0.7 0.4-0.7 0.3-0.8 0.3-0.8
Production capacity (kg/h) 700-900 1500-3000 2500-4000 5000-8000 8000-11000
Main engine power (kW) 75 132 200 250 315
Machine weight (kg) 3500 5800 8500 9000 9600
