compressed sawdust pallet machine
presswood pallet making machine|sawdust pallet press machine
The compressed sawdust pallet machine is a sawdust pallet molding equipment developed by our factory. The pallets produced by this machine are of very good quality. The machine has good stable performance, high production efficiency, low energy consumption, and can be heated by heat transfer oil. It can produce pallets of different specifications by changing the mold. It is easy to install, without basic positioning, and can be produced when it is placed flat.
Raw material of wood pallet press machine
Compressed sawdust pallet machine is suitable for all kinds of raw materials containing wood fiber that can be formed by hot pressing, mainly including waste wood, bamboo, bagasse, straw, sawdust, wood chips, shavings, logs, burned forest, planks, branches, lumber, waste pallets and other things that are rich in fiber can also be used to produce pallets, such as straw, waste kraft paper, bamboo, palm Tree, coconut, conifer, wheat straw, bagasse, miscanthus, etc., etc. In addition, leftovers from the wood industry, waste wood from the agriculture and construction industries can be used to make pallets. The raw materials are pressed into pallets by the hydraulic system and mechanical pressure. The raw materials need to add a certain amount of additives (glue, paraffin, etc.) and mix well.

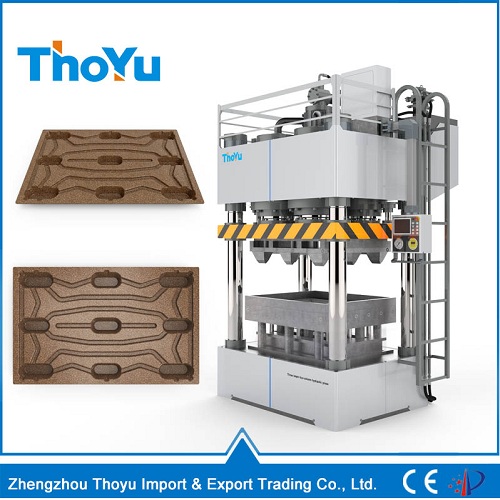

Introduction of compressed sawdust pallet machine
Molded pallet machine uses raw materials containing plant fibers, dried, mixed with glue, and molded into pallet at high temperature and high pressure. The pallets are formed in the mold at one time. These pallets are used for various purposes, mainly in the logistics and transportation industry. Compared with ordinary plastic pallets and wooden pallets, it has the advantages of strong carrying capacity, deformation resistance, and long service life.
The surface of the pallet produced by the molded pallet machine is flat and smooth, which can meet the transportation of various goods, and the lower surface is equipped with reinforcing ribs. The horizontal and vertical force of the board is balanced, and the nine-leg distribution can meet the four-way insertion of the forklift. The large static load-bearing capacity can reach more than 5000 kg, and the large dynamic load-bearing capacity can reach more than 2400 kg.
Processing process of presswood molded pallet machine
The structure design of the sawdust pallet press machine is reasonable, and it adopts three-way synchronous positioning. During processing, the upper and lower molds are accurately closed, the hydraulic system is filled with liquid quickly and provides strong pressure, which can be fully pressurized in 35 seconds. The machine is easy and simple to operate. Just spread the sawdust in the mold and press the work button, and the machine can automatically complete the whole process of pressing, holding, timing, unloading, demolding, and rising.
Advantages of compressed sawdust pallet machine
1.The presswood molded pallet machine uses electric energy as the heat source, and the machine will not produce exhaust gas and waste during processing. In the production process, it is clean and hygienic, with no smoke, no environmental pollution, no corrosion to equipment, and no impact on the health of operators.
2.The temperature adjustment range is wide, the temperature control accuracy is high, and it has a complete operation control and safety monitoring device.
3.The machine has a compact structure, a small footprint, and is simple and convenient to install. It is safe and stable during use, no professional operation is required, and the operation method is simple and easy to understand, saving labor costs.
