Automatic pallet legs nailing machine

    pallet legs nailing machine

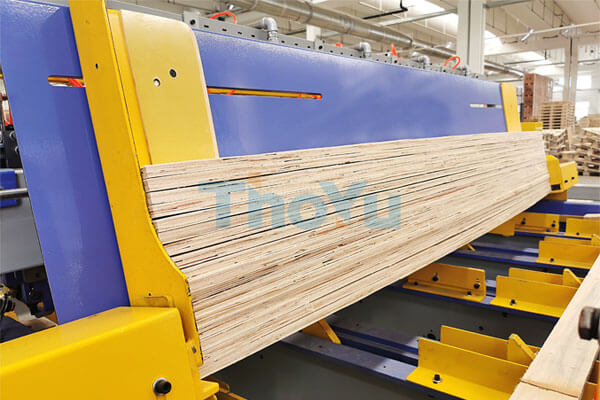

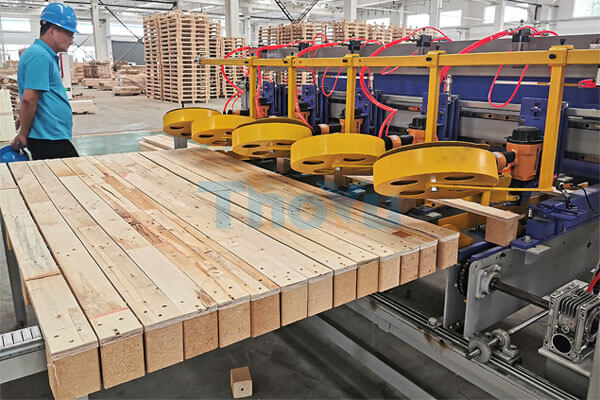

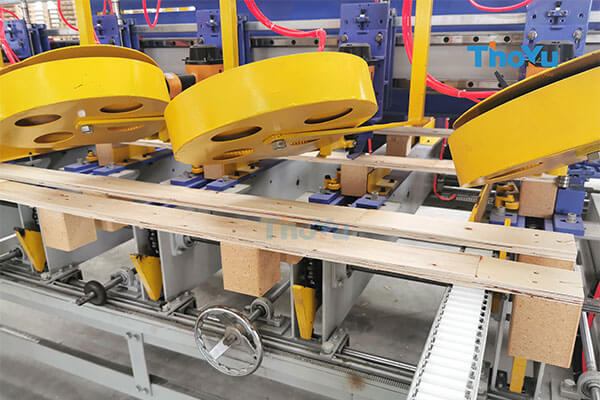

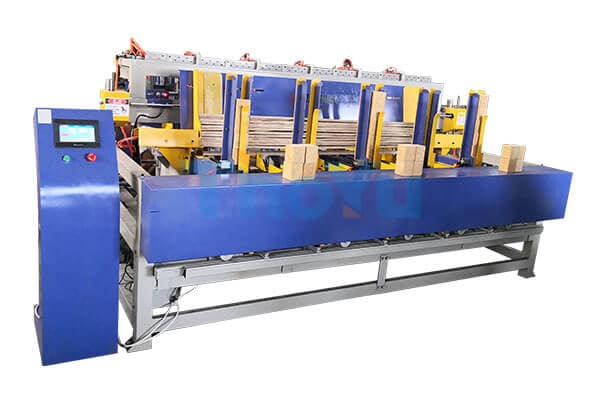

    Automatic pallet legs nailing machine

    Automatic wood pallet legs nailing machine has two parts, one is feeding part, and another is nailing part. And it can nail wood pallet leg automatically and can make 8~10 pcs/min, with high efficiency. Also, save the labor cost, this machine just needs one worker can operate, manual feeding the blacks, then machine working nailing pallet leg automatically.

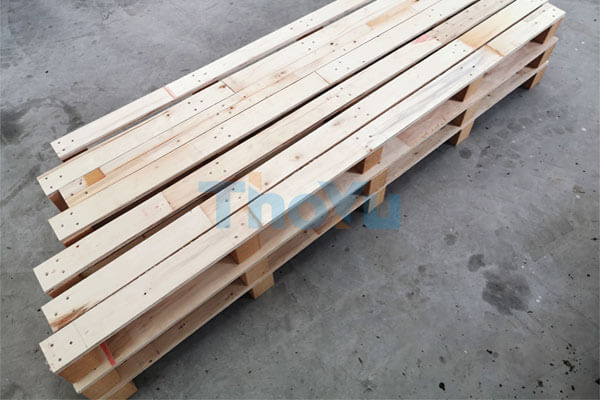

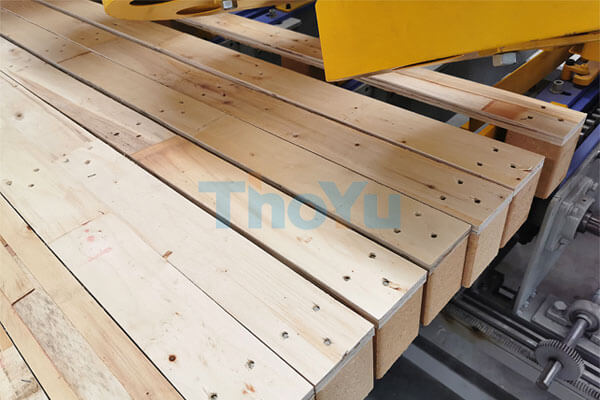

    nailed pallet legs
    nailed pallet legs

    Technical parameter

    Wood board length800-1350 mm
    Wood board width80-150 mm
    Wood board thickness12-20 mm
    Wood block length80-150 mm
    Wood block width80-150 mm
    Wood block thickness80-100(110) mm
    Wood board + wood block thicknessless than 130 mm
    Capacity600-720 pieces/hour
    Machine dimension6 m*2.4 m*2.4 m (L*W*H)
    Machine weight1100 kg

    Maybe you are interested in EPAL pallet production.

    EPAL pallet production process

    Equipment: CNC Wood SawBlock Cutting MachinePallet Legs Nailing MachineNailing and Stacking Machine

    • Capacity: 2 pallet/ 1 minute/ 1 man
    • Investment cost: $70,000-80,000
    • Pallet size: for all sizes (standard and non-standard)
    • Easy size adjustment in half an hour

    We also provide pallet supporting products, which ensure the security of goods and workers, such as nailer, pallet nails, stretch film, wrapping machine, pet strap, adhesive tape, and pallet handling equipment, and so on.

    PalletMach has a professional technical and service team, with more than 15 years’ experience of overseas installation and after-sales service. We also provide wood scrap recycling solution, thus you can build pallet blocks(used in EPAL pallet, learn more) or presswood pallet(new fumigation-free pallet, learn more), more information please feel free to contact us.
