wood pallet stringer notching machine

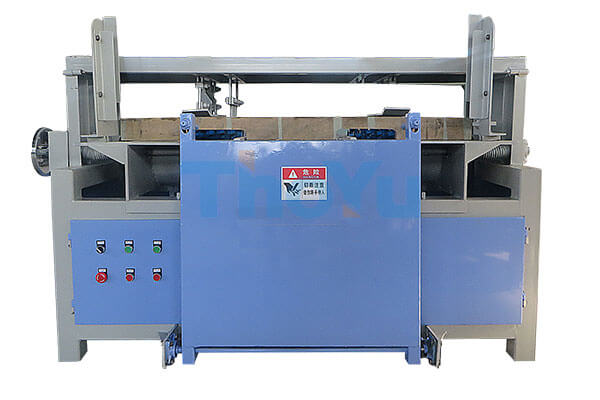

Wood Pallet Stringer Notching Machine

Wood pallet stringer notching machine is used to make 4-way pallet by notching the pallet stringer, which is also called wood pallet grooving machine.

The pallet string notching machine is mainly used for string wooden pallets and it has a great quality and high efficiency. wood pallet grooving machine is a kind of special requirements in the production of wooden pallets. Also known as the “American wood pallets”, this wood pallet grooving machine is for wood pallets longitudinal automatic dredging, milling slot, dual-slot open at the same time, and smooth slot with the same size.

Wood pallet stringer notching machine is special process for wood pallet processing, which it can be fork from four directions by forklift. It becomes popular pallet type in the world. It is suitable for different notching size, and it also can be customized according to customer demands.

Features

  1. Notching length is adjustable, and the max notching length is 370 mm.
  2. The cutting blade is adjustable, can easy to change cutter, and cost-effective.
  3. The machine heads with alloy material, with high hardness, wear resistance, strength and toughness, heat resistance, corrosion resistance and a series of excellent performance, thus ensuring the long-term performance.

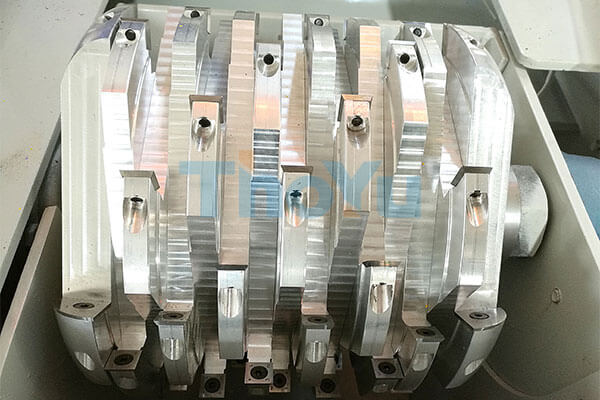

machine head
  • Continuous feed, work platform automatic discharge mode, you can also open a dual-slot, Trench smooth without rough parts, standard size, high precision, and adjustable slot depth specifications.
  • Reliable security guards, when workers operate completely without touching knives.
  • Wood pallet stringer notching machine is high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanically, completely replace the previous trough excavation work manually.

Wood pallet stringer notching machine parameter

ModelPMSRO-1200PMSRO-1800
Overall dimension1250*1250*1280 mm2000*1200*1280mm
Stringer lengthUnlimitedLess than 1400mm
String thickness40-60 mm40-60 mm
Stinger width80 mm80 mm
Max slot depth230 mm230 mm
Max slot width45 mm50 mm
Capacity800-1200 pieces/hour1500-1800 pieces/hour
Net weight600 kg1000 kg

Maybe you are interested in Stringer pallet production.

stringer pallet production process
stringer pallet production process

Equipment: CNC Wood SawStringer Pallet Notching MachineDeck Board ChamferNailing and Stacking Machine

  • Capacity: 1 pallet/ 1 minute/ 1 man
  • Investment cost: $60,000-70,000
  • Pallet size: for all sizes (standard and non-standard)
  • Easy size adjustment in half an hour

We also provide pallet supporting products, which ensure the security of goods and workers, such as nailer, pallet nails, stretch film, wrapping machine, pet strap, adhesive tape, and pallet handling equipment, and so on.

ThoYu has a professional technical and service team, with more than 10 years’ experience of overseas installation and after-sales service. We also provide wood scrap recycling solution, thus you can build pallet blocks(used in EPAL pallet, learn more ) or presswood pallet(new fumigation-free pallet, learn more ), more information please feel free to contact us.
